AP Racing TRACK PRO 5000R CP9665 RACE TRACK CALIPER + JHOOK SLOT 362MM ROTOR BIG BRAKE KIT FOR AUDI RS3 8V
Sale price
$6,199.00 AUD
Regular price
$7,445.00 AUD
Skip to product information
AP Racing TRACK PRO 5000R CP9665 RACE TRACK CALIPER + JHOOK SLOT 362MM ROTOR BIG BRAKE KIT FOR AUDI RS3 8V
Sale price
$6,199.00 AUD
Regular price
$7,445.00 AUD
AP Racing TRACK PRO 5000R CP9665 CALIPER + 362MM ROTOR BIG BRAKE KIT
FOR AUDI RS3 8V
SPECIAL OFFER - 1 SET ONLY!
RRP = 8500/SET +
FULL FRONT BIG BRAKE UPGRADE KIT
Genuine AP RACING PRO 5000R High Performance calipers CP9665
+ KPR BRAKE HIGH CARBON -HEAT TREATED J-HOOK DISC BRAKE ROTORS

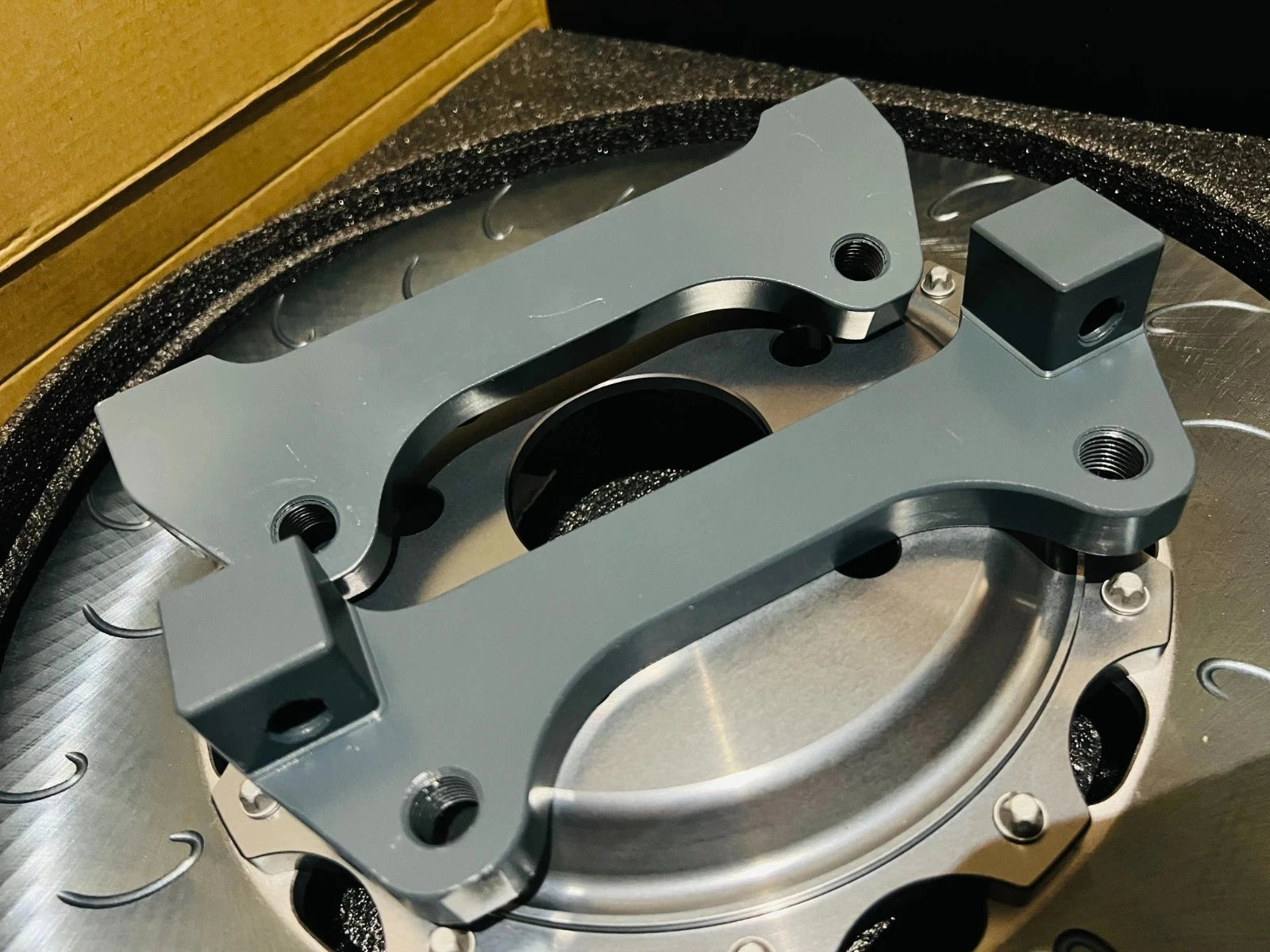

+ HEAVY DUTY BRACKETS + 7075 ALUMINIUM HATS
+ TRACK SPEC RACE PRO KPR BRAKE PADS
+ NUTS AND BOLT
+ BRAIDED BRAKE LINE KIT
FULL BOLT ON KIT SUITS AUDI RS3 8V
18 INCH + WHEEL
KPR BRAKES = HIGH PERFORMANCE HT5S DISC ROTORS
362 X 32MM WITH ALUMINIUM 7075 HATS (RACING SPEC SET UP)
FITS AUDI RS3 8V (5h X 112 PCD)
REFERENCE:
AP RACING UK MADE CALIPERS
-6 Piston - CP9665-2 / -3S7L - 210mm Centres - 25mm Thick Pad
Typical Applications:
- Budget, general competition use.
- Single make race series.
Features:
- Benefits from a radical asymmetric design concept.
- Superior dynamic performance.
- Increased stiffness.
- Forged, two piece aluminium alloy body.
- Radial mount, 210.0mm x 42.0mm centres.
- Suits Ø390.0mm Max or 362.0mm Min x 36.0mm Max / 32.0mm Min thick disc.
- Stainless Steel Pistons.
- High temperature seals.
- 7lb Anti-knockback springs fitted.
- Stainless Steel wear plates.
Part Numbers:
- RH = CP9665-2S7L.
- LH = CP9665-3S7L.
Brake Pad Information
(To view an image of the pad
click on Pad Part No)
- CP6230D54
- Pad Area = 81.62cm³
- Pad Depth = 54.0mm
- Thickness = 25.0mm
*IMPORTANT NOTE* The top tag of the pad needs to removed before fitment.
TECHNICAL SPECIFICATIONS
Piston Szes - mm - Ø27.0 x 2
- Ø31.8 x 2
- Ø38.1 x 2
Piston Area - cm² 50.1
Disc Diameter - mm - Max = 390.0
- Min = 362.0
Disc Thickness - mm - Max = 36.0
- Min = 32.0
Weight - No pads - Kg 3.1
Hydraulic Threads M10x1.0
Mounting Type Radial
Mounting Centres - mm 210.0
Mounting Offset - mm 42.0
Mounting Hole Ø - mm 12.27 - 12.17
PL Dimension - mm 63.5
Bleedscrew Tightening Torque - Nm 17
SPARE PARTS
Pistons - Ø27.0 = CP9665-114
- Ø31.8 = CP9665-115
- Ø38.1 = CP9665-116
Seal Repair kit CP8518-CEJ
Anti-Knockback Spring Kit CP6518-7LBSSL
Pad Retainer
CP9665-121A x 2
Retainer Bolts CP3715-117ST x 2
Wear Plates
- RH = CP9665-112
- LH = CP9665-113
Bleedscrew Kit CP3880-1
For a prompt response to your inquiries,
please email us sydney@999autoshop.com.au
or
WhatsApp at +61 428 838 848.
We will reply as soon as possible.
How to order
- Message us your vehicle details (model, year). If unsure, include your VIN and wheel size.
- Tell us the rotor size you require. We will confirm fitment and recommend options.
- Once confirmed, place your order using "Buy Now."
- We will prepare and dispatch your brake kit.
